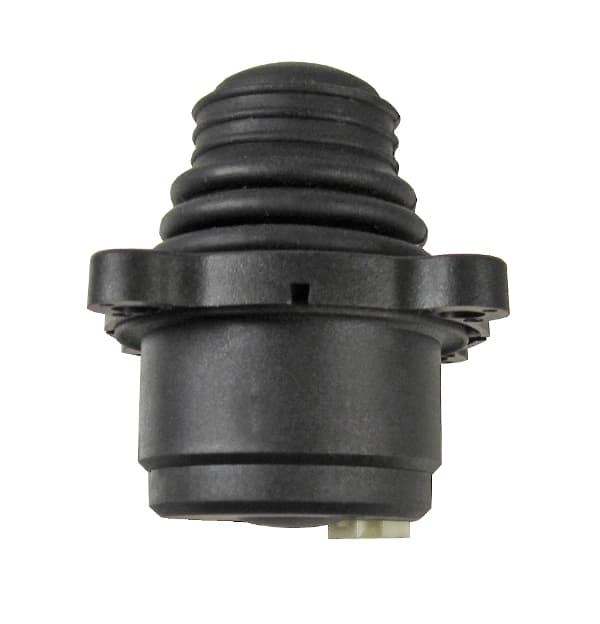

APEM, Inc., Vista, Calif., now offers the new HS Series of miniature switching joysticks ideal for wireless remote controls, joystick, and gamepad integration.
Standing only about 3/4 in. (20mm) above panel, the HS Series provides 2-way, 4-way, or 5-way operation with superior tactile feedback.
Inside its miniature package, the HS Series features up to four micro-switches fitted with either silver- or gold-plated contacts. The gold-plated option provides up to 200,000 electrical operations at 10mA and 30VDC. The silver-plated option provides up to 100,000 operations at 100mA and 30VDC.
When specified with a two-way limiter plate, the HS Series provides two switching contacts. When specified with a four-way limiter plate, the HS Series provides four switching contacts. Electrical connections are provided through a six-terminal Molex (501331-0607) connector. Optional wire harnesses may be specified at the time of order.
The eight handle options including traditional “castle” and “conical” styles, as well as a push-button option. Featuring a miniature tactile switch protected under an elastomer boot, the new push-button handle provides an off-momentary validation feature. The new push-button handle is noted as the “Option 6” handle in the Option Selection guide. When the Option 6 handle is configured with a 4-way limiter plate, the HS Series provides five independent MOM-OFF-MOM operations.
The HS Series may be specified with a black oxide coated brass threaded D-flat housing, making for simplified drop-in panel installation. Mounting accessories for the new housing include a stainless steel lock washer and hex-nut, rear-mount, and drop-in mount plastic bezel. All three mounting options provide IP67 and IP69K protection against water, dust, and oils, making them suitable for a range of outdoor applications.
