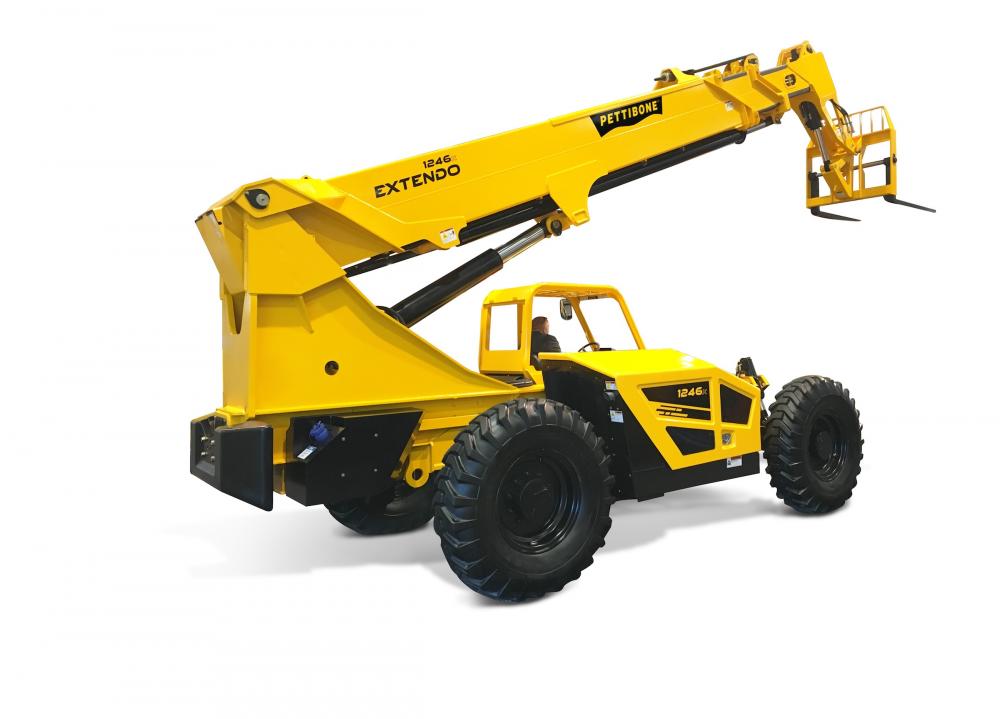

July 16, 2019 - Built on their next generation X-Series platform, Pettibone introduced the Extendo 1246X telehandler, a workhorse that delivers 12,000 lbs. of load capacity.
The 1246X is powered by a 117-hp Cummins QSF 3.8 Tier 4 Final diesel engine. Mounted on a side pod, the engine offers easy service access, while allowing curbside visibility and ground clearance of 19 in. A 30-gal. fuel tank provides ample volume for a full day’s work at 100% load.
Featuring an advanced boom design, the 1246X offers a maximum lift height of 46 ft., 6 in., max forward reach of 30 ft., and max load capacity of 12,000 lbs. Formed boom plates provide the boom structure with greater strength while reducing weight. The design also minimizes boom deflection for better control and accuracy when placing loads.
Boom overlap is nearly double that of previous models to provide smoother operation and reduce contact forces on wear pads, thereby extending service life. A bottom-mounted external extend cylinder further reduces the load on wear pads by up to 50%. This cylinder location also provides greatly improved service access to internal boom components. Fastener-less wear pads also simplify service, and heavy-duty extension chains help ensure stable boom functions.
Pettibone’s hydraulics deliver increased controllability and overall operating feel, while enhancing efficiency and cycle speeds. Cylinder cushioning dampens the end of strokes – both extending and retracting – to avoid the wear-and-tear of hard, jarring stops, while also helping prevent the potential spilling of a load. The telehandler also uses a single lift cylinder that improves operator sight lines, and has twin non-tensioned hydraulic lines for tilt and auxiliary plumbing.
Drivetrain and axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed. A pintle hitch mount adds versatility for towing. The unit offers full-time four-wheel-drive with limited-slip front axle differential. Tight steer angle capability provides an efficient turning radius. The Dana VDT12000 Powershift transmission offers three speeds, forward, and reverse.
The Extendo operator cab maintains Pettibone’s ergonomic seat, pedal, joystick and steering wheel positions, while optimizing line of sight in all directions. A new analog/LCD gauge cluster comes standard. An optional 7-in. digital display with integrated back-up camera is also available. The cab also offers enhanced climate control, flat bolt-in glass, split door design, openable rear window, USB accessory plug, lockable storage under the seat, and water-resistant components for easy interior washdown.
All-steel fuel and hydraulic tanks are built to resist damage, and the lockable fuel-fill is in a clean, accessible location. Other features include split-system electrical circuit panels, a 12-volt accessory plug in the engine bay, and heavy-duty bright LED lighting. Additional options include axle-mounted outriggers, solid or foam-filled tires, a sling hook for additional load security, and a wide variety of attachments.
For more information, visit www.gopettibone.com.
