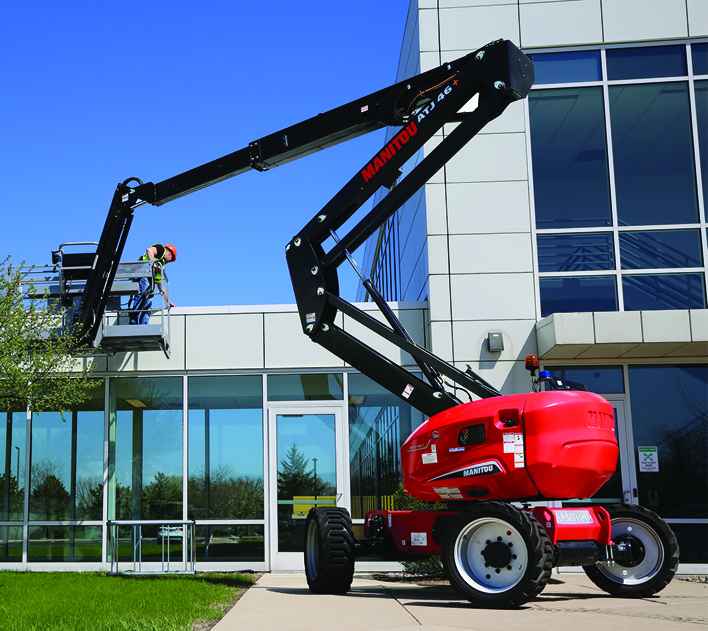

Manitou ATJ 46+
The Manitou ATJ 46+ articulated boom lift is designed to meet operators’ outdoor handling needs. Three joystick controllers allow the machine to perform (four) simultaneous and proportional hydraulic movements. This, combined with cushioned cylinders, allows for smooth operation and first-time precise positioning in tight areas. The ATJ 46+ (PLUS) also has a higher capacity and wide platform (7-foot, 7-inch length and 2-foot, 11-inch width) that holds three people with an unrestricted range of motion and a capacity of 900 pounds.
The ATJ 46+ has a platform height of 46 feet, 7 inches and an outreach height of 27 feet, 11 inches, with an up-and-over height of 24 feet, 2 inches. It offers 360-degree continuous turret rotation by way of a hydraulic motor, with the rotation speed varying based on the extension of the boom. The ATJ 46+ allows the operator to select three steering modes — four-wheel, two-wheel or crab — based on the terrain and jobsite, and the machine features rough-terrain foam-filled tires to handle tough jobsite conditions. A heavy-duty oscillating, limited-slip front axle improves front-wheel traction on slippery or all-terrain surfaces and adds a button-activated locking rear differential.
This articulated boom lift features a 24.1-horsepower Kubota Tier 4 diesel motor, automatic engine revolutions per minute based on multifunction and system load. Optional generators, work lights, bio-degradable and cold-temperature oils, oil pre-heaters, high-capacity battery and battery blankets provide performance in any temperature environment.

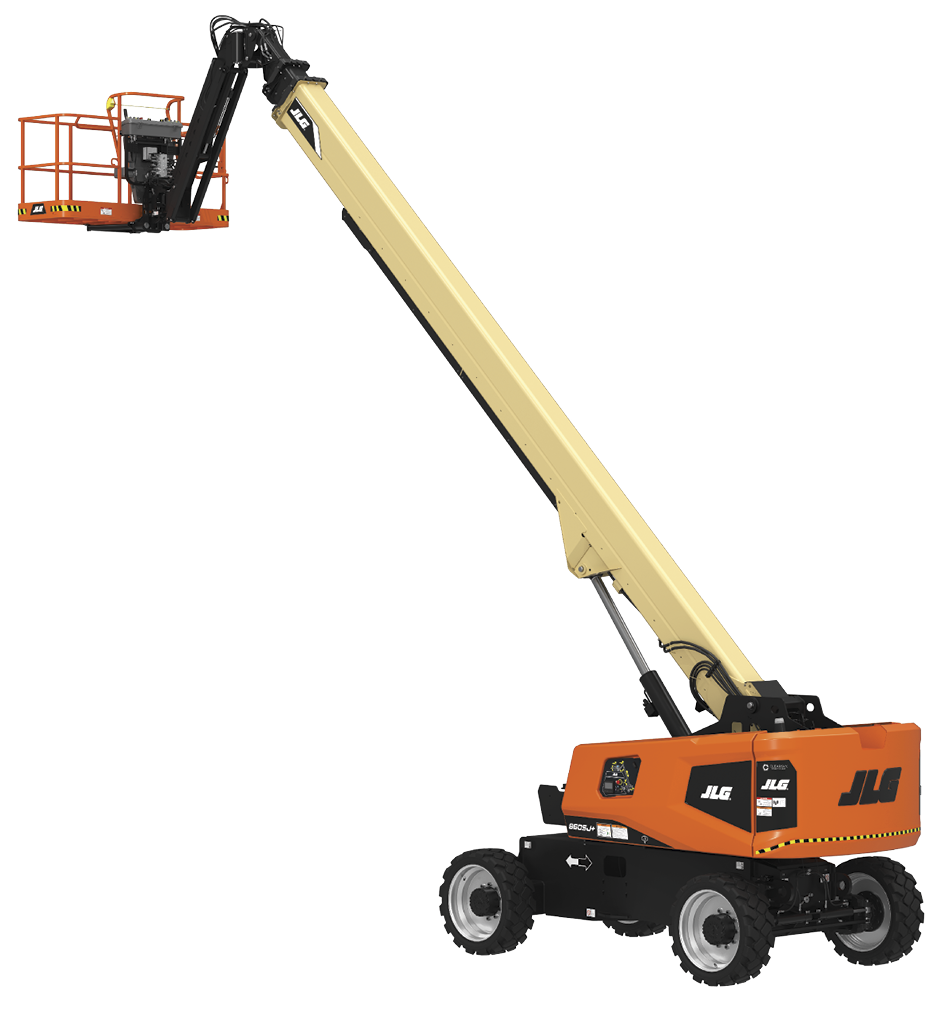

JLG 860SJ+
The JLG 860SJ+ telescopic boom lift is designed for work that demands both reach and flexibility, offering an 86-foot platform height for a range of elevated applications, including construction, steel erection and industrial maintenance. The machine builds on the 860SJ, while introducing updates aimed at improving how operators handle materials and position themselves at height.
An increase in platform capacity allows crews to bring more materials and personnel into the air, reducing the need for repeated trips. Strong outreach performance supports consistent positioning across a wider working area, while added flexibility in machine movement helps operators navigate around structural obstacles and tight jobsite conditions. When equipped with approved power options, the platform can also accommodate high-powered tools, including welding equipment, without requiring support from the ground.
Serviceability is addressed through a layout that improves access to key components and centralizes maintenance points, helping simplify routine service and diagnostics. The integration of JLG’s ClearSky Smart Fleet IoT platform adds a layer of connectivity, giving fleet managers and operators greater visibility into machine performance and maintenance needs.

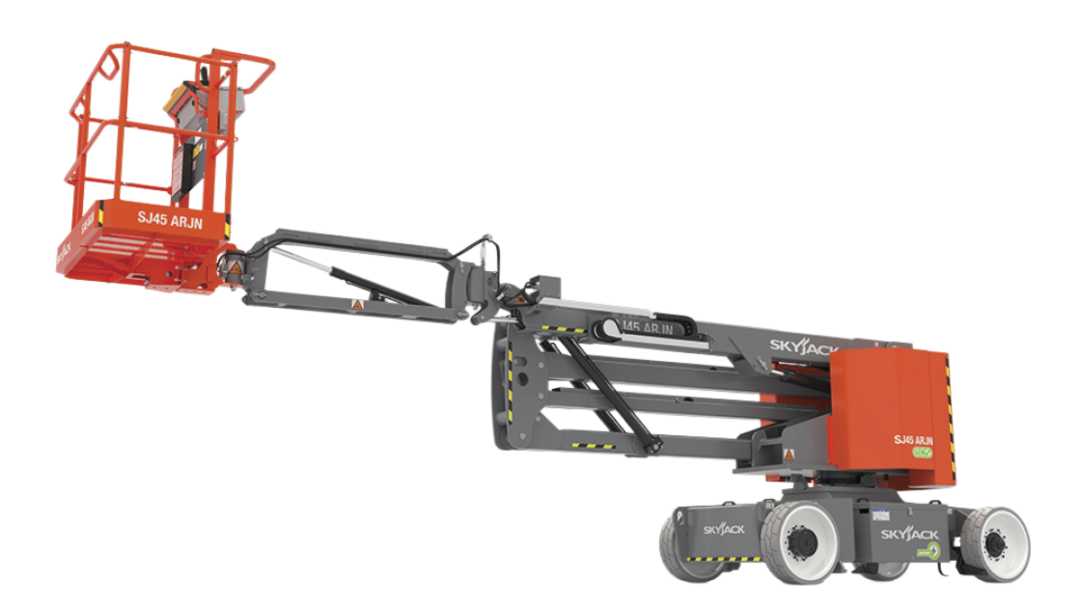

Skyjack SJ45 ARJN
Skyjack’s new compact, zero-emission, low-noise SJ45 ARJN has been designed to offer superior performance across indoor and outdoor jobsites. The SJ45 ARJN battery-powered electric slab boom has a working height starting at 51 feet. With a platform capacity of 500 pounds, a 4-foot, 8-inch jib as standard and a narrow width of 4 feet, 11 inches, the SJ45 ARJN provides up-and-over access capability of 25 feet, 7 inches. This new slab boom offers onsite maneuverability and precision to work in confined spaces.
The SJ45 ARJN features EASYDRIVE, an intuitive direction-sensing function that allows the machine to move in the general direction of the joystick’s movement, where forwards is forwards and backwards is backwards. There is no need to coordinate coloured directional arrows on the base of the machine. The boom also features SKYRISER technology, which ensures that the riser and main pivot point connecting the fly boom to the riser travel in a straight vertical line. Movement in a true vertical manner, without drifting forward or back, reduces the amount of repositioning the operator needs to do in order to stay close to a building facade, improving productivity.
The SJ45 ARJN is one of the few machines in this class to offer a rotating jib, which provides 180-degree horizontal movement (ANSI) or 132-degree horizontal movement (CE) to allow precise positioning of the platform and increased productivity. This narrow machine is capable of access through double standard doors, offers a low stowed height of 6 feet, 6 inches and has a weight under 16,000 pounds, which increases ease of transport.

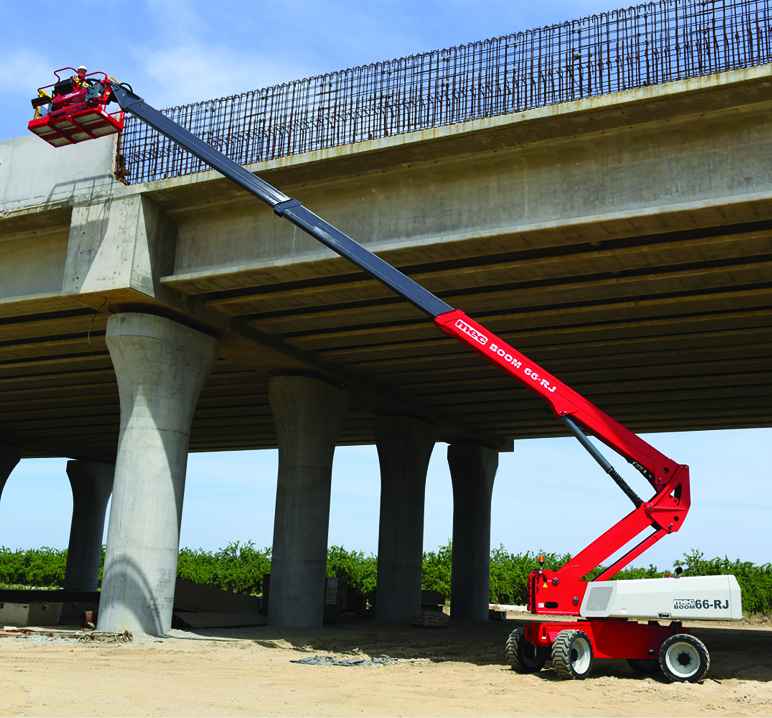

MEC 66-RJ
Part of MEC’s MAX Series, the 66-RJ diesel telescopic boom targets a broad range of applications, from heavy construction to the precise positioning demands of glazing and industrial work. The machine is designed to deliver a combination of performance and capacity across varied jobsite conditions.
This boom lift reaches a working height of 72 feet with 56 feet of horizontal outreach and has an operating weight of 28,528 pounds. It supports a dual lift capacity of 900 pounds restricted and 600 pounds unrestricted, allowing crews to carry tools, materials and multiple operators within the work envelope without sacrificing stability. A standout feature is the 6-foot multi-directional jib, which offers 135 degrees of vertical articulation, 120 degrees of horizontal rotation and 180 degrees of platform rotation. This range of motion helps operators navigate around structural steel, framing and other obstacles without frequent chassis repositioning, a practical advantage on congested or complex jobsites.
On the ground, the 66-RJ includes two-wheel, four-wheel “round” and crab steering modes, along with four-wheel drive, locking differential axles and a 7-degree oscillating axle. Foam-filled rough-terrain tires and up to 45% gradeability support operation on uneven terrain, while maintaining maneuverability in tighter spaces.

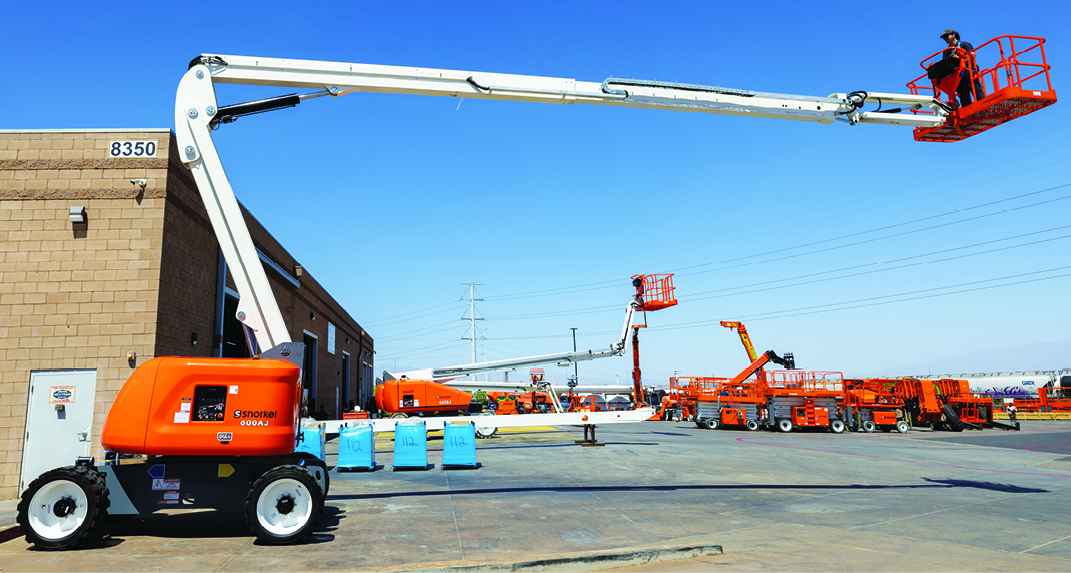

Snorkel 600AJ
The Snorkel 600AJ articulating boom lift is designed for applications that require both high capacity and maneuverability in confined or complex environments. With a 66-foot working height and an unrestricted platform capacity of 1,000 pounds, the machine offers higher lifting capacity within its class, allowing operators to carry more tools and materials without reducing working range.
A zero-tail swing configuration supports operation in tighter spaces, while a 135-degree jib arc and extended working envelope are intended to improve positioning in up-and-over applications. Additional features, such as axle oscillation, contribute to stability on uneven terrain, which remains a key consideration for articulating boom lifts operating on mixed jobsite conditions.
The unit is powered by a 65-horsepower Tier 4 Final diesel engine, aligning with current emissions requirements while maintaining the performance expected in this category. Operator-focused elements — including proportional controls and a multi-entry platform — are designed to support ease of use and jobsite efficiency.
The 600AJ’s combination of lift capacity, reach and compact operation reflects ongoing demand for equipment that can balance productivity with space constraints, particularly in urban construction and industrial maintenance environments.

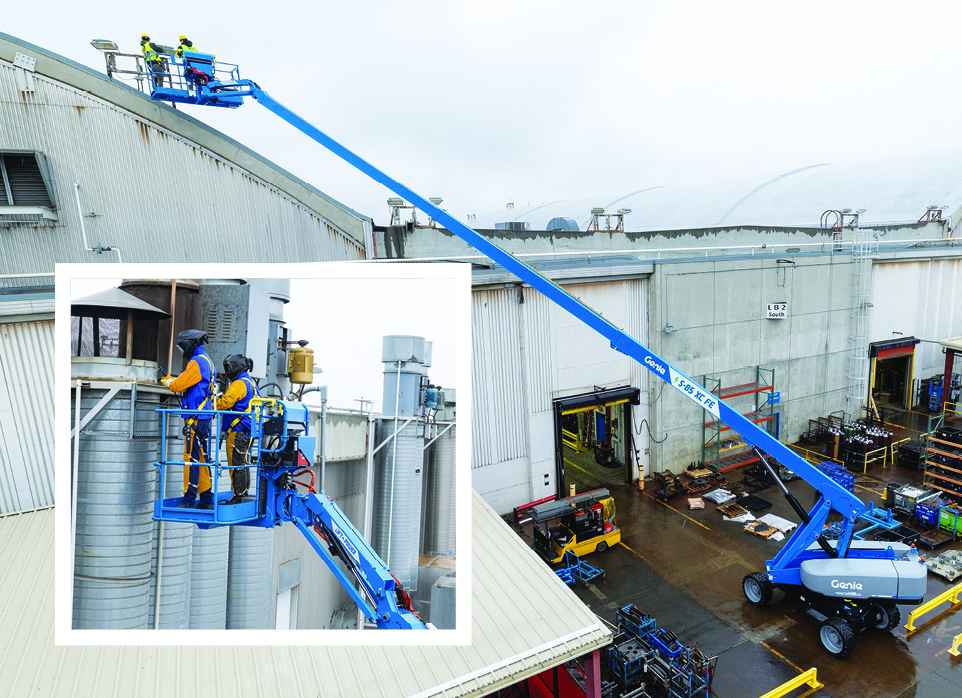

Genie S-85 XC FE
For projects that require reduced emissions or lower noise, Genie’s newest boom lift, the S-85 XC FE hybrid boom, enables extended electric operation while retaining the backup of a fuel-powered generator. This allows crews to work indoors, in urban settings or in regulated environments without sacrificing uptime. The hybrid system supports continuous operation, with the ability to keep working even when the battery is of low capacity. Combined with four-wheel drive, active oscillating axles and rough-terrain performance, the machine adapts to a wide range of jobsite conditions.
The XC design supports up to 1,000-pound platform capacity for most of the working envelope, allowing operators to handle heavier tools and materials with fewer repositioning cycles. This is particularly valuable for applications such as steel erection, infrastructure work and industrial maintenance, where productivity at height directly impacts project timelines. Integrated power options further enhance versatility by enabling crews to operate tools directly from the platform.
For the North American Market, Genie’s Lift Power can provide up to 12 kilowatts. The lithium-ion battery eliminates routine maintenance such as watering and replacement, while more than 80 design improvements enhance durability and simplify service. With fewer hydraulic components, sealed systems and faster diagnostics, the S-85 XC FE is designed to support longer operating periods with reduced downtime.

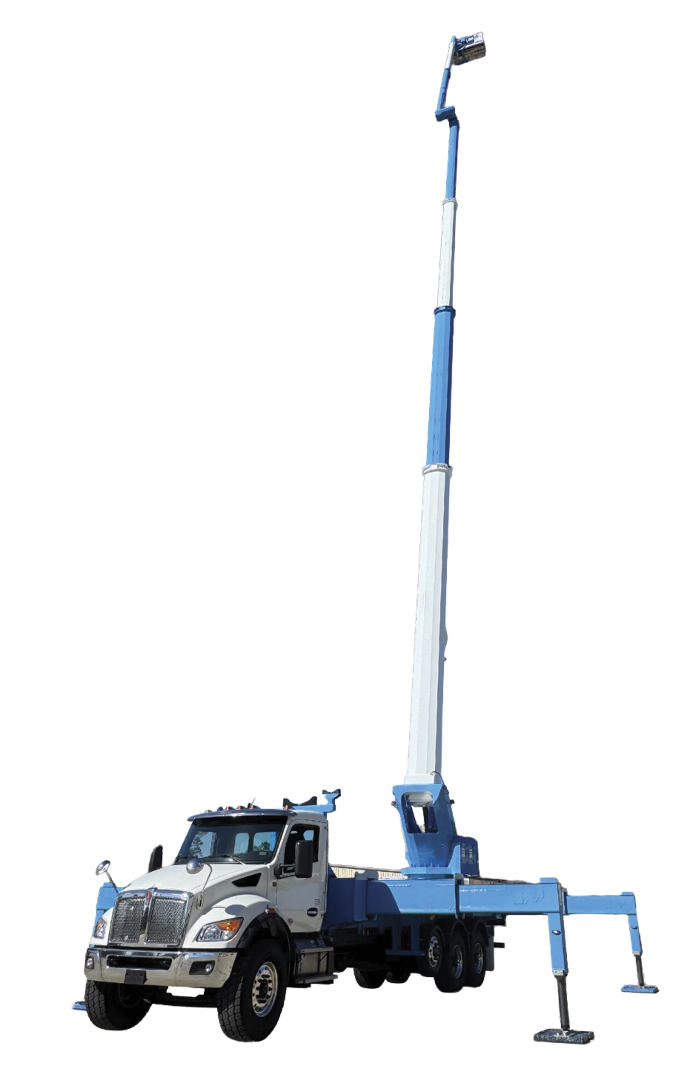

Ruthmann T187AE
Ruthmann’s T187AE allows more work to be completed with less repositioning compared to other access methods, and combines high reach with easy roadability.
Built on a Kenworth T480 chassis, the Ruthmann T187AE delivers a 187-foot working height and a 133-foot horizontal outreach, allowing crews to cover more area without repositioning. At around 60,000 pounds, the unit meets federal bridge law limits and can travel between sites without permitting. The dynamic reach system (DRS) calculates the working envelope in real time based on outrigger positions and platform capacity. Operators can select wind-speed ratings of 28, 35 or 43 miles per hour, and a jack-force limiter reduces ground-bearing pressure for sensitive surfaces.
For taller tasks, the Ruthmann T328AE raises the platform to 328 feet while maintaining the same 133-foot horizontal outreach. It shares the T187’s DRS envelope management and wind-speed/jack-force limiter options, giving crews enough vertical and horizontal reach to tackle work normally reserved for cranes or suspended access systems.
Ruthmann’s DRS technology optimizes each machine’s working envelope by analyzing outrigger position, boom configuration and platform capacity. Ruthmann’s working envelope adjusts in real time rather than relying on a fixed geometry, allowing reach to vary based on positioning.
Standardized components across the product line make maintenance simple. For contractors working on complex projects, these road-legal, high-reach platforms provide an alternative to traditional access methods and are used across sectors such as electric-utility linework, wind energy and telecommunications, among others.

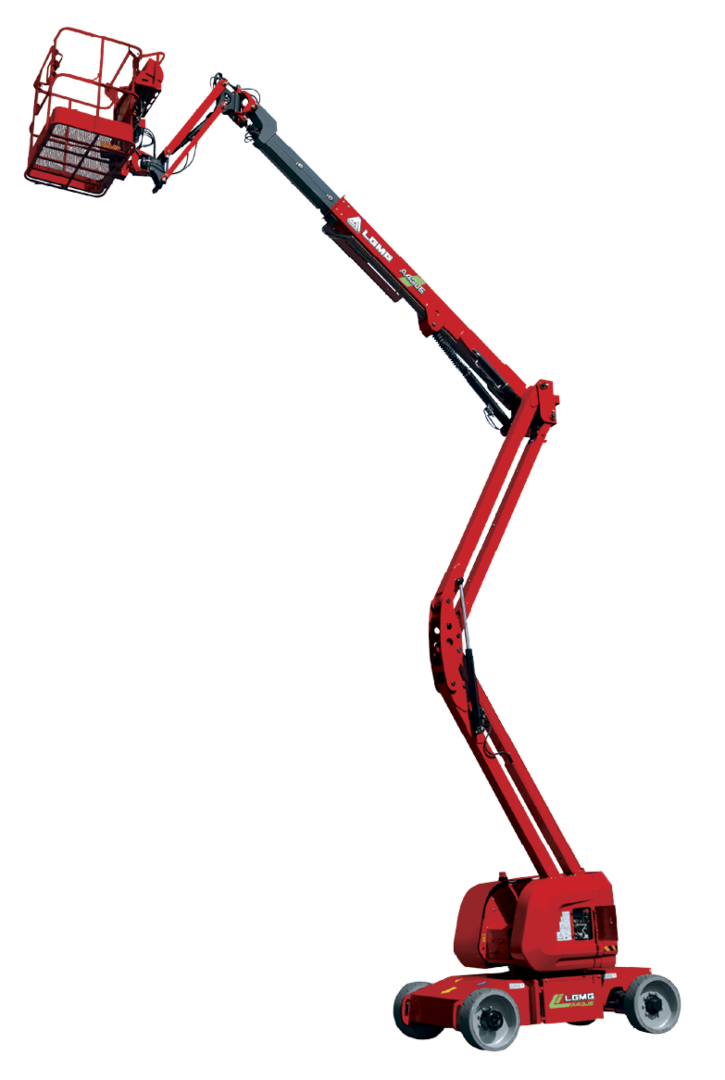

LGMG A43JE
The LGMG A43JE articulating electric boom lift delivers a combination of reach and compact design in the mid-size category. With a platform height of 42 feet, 8 inches and an overall width of 4 feet, 11 inches, the model is among the narrowest machines in its class offering this level of working height. This configuration allows access to confined or space-restricted jobsites, including indoor facilities, urban projects and maintenance environments, while still providing reach associated with larger models.
The A43JE delivers up-and-over clearance of 23 feet, 4 inches, enabling operators to navigate obstacles. The machine comes standard with a 160-degree horizontal rotating jib, along with smooth, intuitive controls, supporting precise positioning and efficient operation in tight spaces. A 441-pound platform capacity accommodates up to two occupants, making it suitable for a range of applications including installation, maintenance and repair work across commercial and industrial settings.
The A43JE is designed for use across a range of jobsites within its height class. The model provides a higher working height than standard 40-foot narrow electric booms and is positioned within a comparable acquisition cost range, supporting fleet flexibility.
This articulated boom machine is powered by a zero-emission electric drive system, making it well-suited for indoor use and environments with strict emissions requirements. LGMG Hostile Environment Kit comes standard and includes protective features strategically designed to help safeguard against external damage while extending machine life.

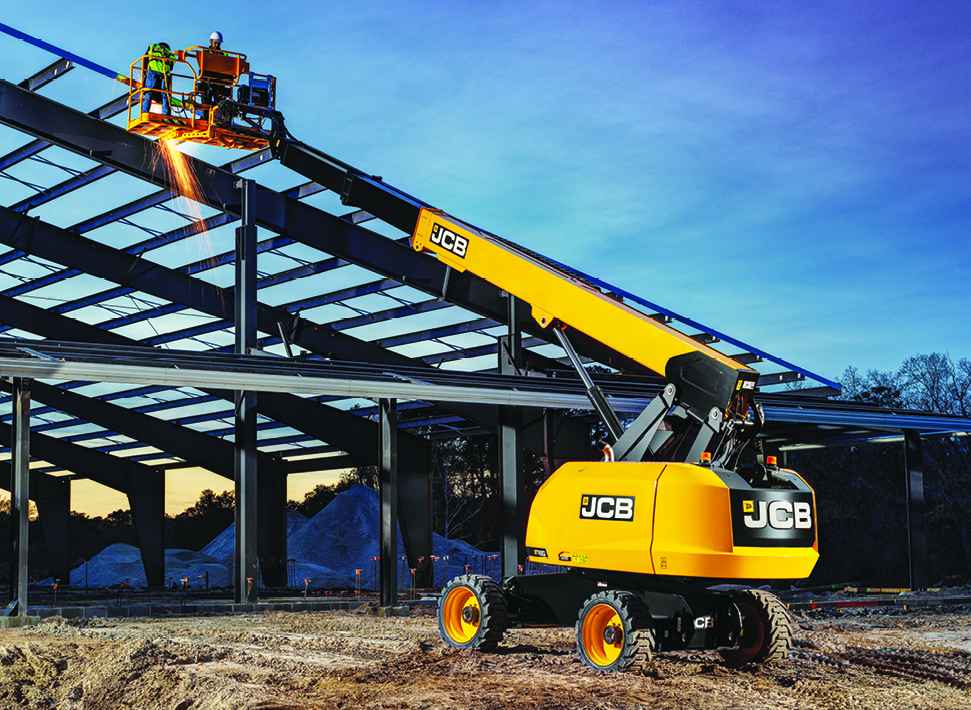

JCB T65D
The JCB T65D telescopic boom lift is designed for applications that demand capacity and outreach, supporting work on large-scale construction, industrial and infrastructure projects where reach and stability are critical.
At the center of its latest update is a new calibration approach. Previously, recalibration required technicians to transport and handle up to 1,000 pounds of test weights when a machine fell out of calibration. The updated system changes this process, allowing calibration to be completed with a lower applied load starting at 120 pounds. This reduces setup time and limits the physical demands placed on service personnel.
The system is enabled by a patented software solution integrated directly into the machine’s control interface. Through a guided on-screen process, technicians can complete calibration without external tools or specialized equipment. This integration reflects a broader emphasis on intuitive operator interaction, where key functions and diagnostics are accessible directly through the machine’s onboard display, helping streamline both operation and service.
Beyond calibration, the T65D features “extra” capacity, allowing operators to manage different load thresholds depending on boom position and working envelope. This provides added flexibility on the jobsite, enabling a single machine to handle a wider range of tasks. Combined with a JCB 444 74-horsepower engine for power on congested and uneven terrain, these features support a balanced focus on performance, usability and uptime.

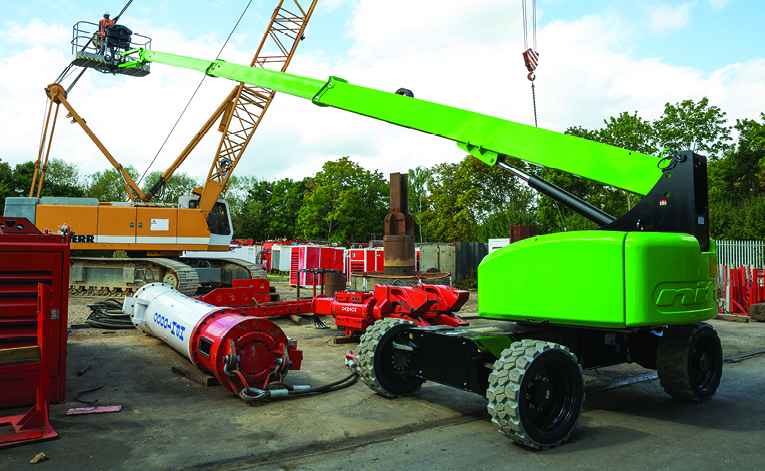

Niftylift SP65SE
The Niftylift SP65SE is a fully electric, self-propelled boom lift designed for access work, supporting use of low-emission equipment on jobsites. Offering a platform height of 65 feet and a horizontal outreach of more than 62 feet, the SP65SE provides a working envelope suited to a range of construction, maintenance and industrial applications. Its all-electric drive system enables quiet, zero-emission operation, making it well-suited to indoor use or environmentally sensitive locations.
A key feature of the SP65SE is its electric drive system. The machine’s drive motors are designed to maximize duty cycles, allowing for extended operation on a single charge. Proportional controls provide smooth, precise movement, while the machine’s design supports intuitive operation for both experienced users and those newer to boom lifts. The machine was also recognized at the International Awards for Powered Access 2025.
From a structural and operational standpoint, the SP65SE includes durability and safety-focused design elements. The integration of SiOPS (Sustained Involuntary Operation Prevention System) helps reduce the risk of operator entrapment by immediately halting machine movement if pressure is detected on the control panel.
The SP65SE reflects ongoing electrification trends in the powered access sector while maintaining similar capability to other machines in its class. By combining extended reach, electric operation and operator-focused safety features, the machine is designed to align with changing jobsite requirements.
