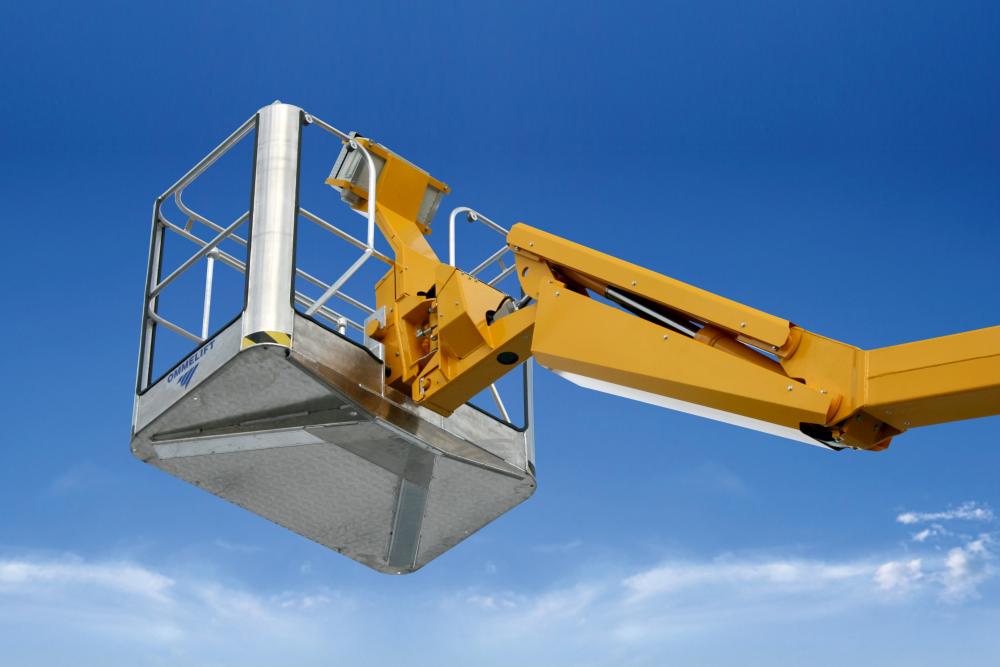

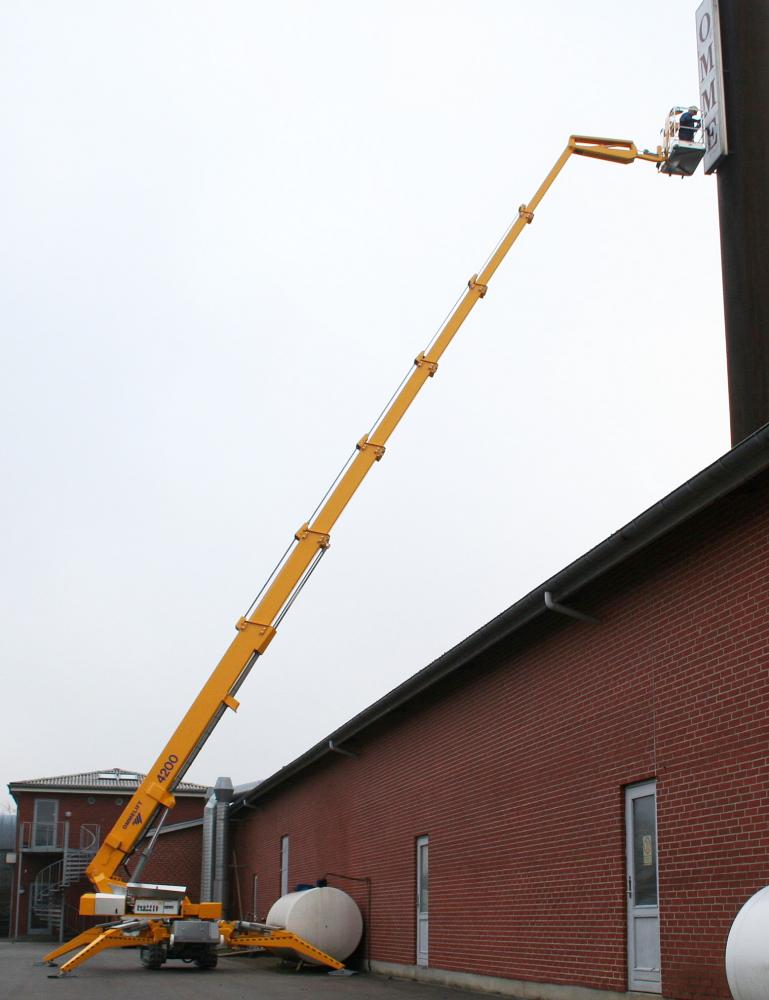

Omme Lift is expanding its product range with a new lightweight hybrid tracked boom lift. Introduced to fulfill growing global customer demand, the 4200 RBDJ is Omme Lift’s largest crawler-mounted boom to date. The telescopic boom comprised of seven sections provides a stable maximum working height of 137'8" and horizontal reach of up to 50 ft., with a 130° articulating jib for precision positioning. The boom can be raised and extended simultaneously, helping to reach the required height in the shortest possible time. Auto-leveling outrigger deployment and retraction is a standard feature.



The diesel/battery hybrid drive train ensures the 4200 RBDJ is equally suited to work in outdoor and indoor environments. The 400Ah battery pack - which is automatically recharged whenever the diesel engine is deployed - completely eliminates the well-known ‘voltage drop’ issue, which can significantly impede the operation of a mains-powered machine, even when using a relatively short power cable.



This lightweight boom offers a true battery-diesel hybrid drive train. The battery power provides self-drive and fast lift operation without inconvenient and potentially hazardous connection to the mains. Moreover, power cuts or local voltage fluctuations do not have an influence on a battery lift performance. The 4200 RBDJ was engineered in response to customer demand for this type of unit, which delivers the working height of a big boom or truck-mounted aerial, combined with a lighter weight, better all-terrain performance, and more compact dimensions.



A rapid two-gear crawler undercarriage ensures that the lift quickly reaches the working area. The crawler chassis is designed to traverse hilly or uneven terrain. It also widely disperses the machine's ground pressure when travelling on delicate surfaces like pavements, lawns, or indoor marble flooring. Weighing just 15,003 lbs. and offering the ability to set up on inclines of up to 27%, the Omme Lift 4200 RBDJ can work comfortably outdoors in many areas unsuitable for conventional big booms.



Compact dimensions enable access into confined spaces, with a stowed height of 6'6" and length of 29'2" – plus the basket is easily detachable, delivering an even more compact travel length of 27'2". The width of 5'8", which provides stable travelling on slopes, can be hydraulically retracted to only 4'5" for narrow paths, corridors, and doorways.
